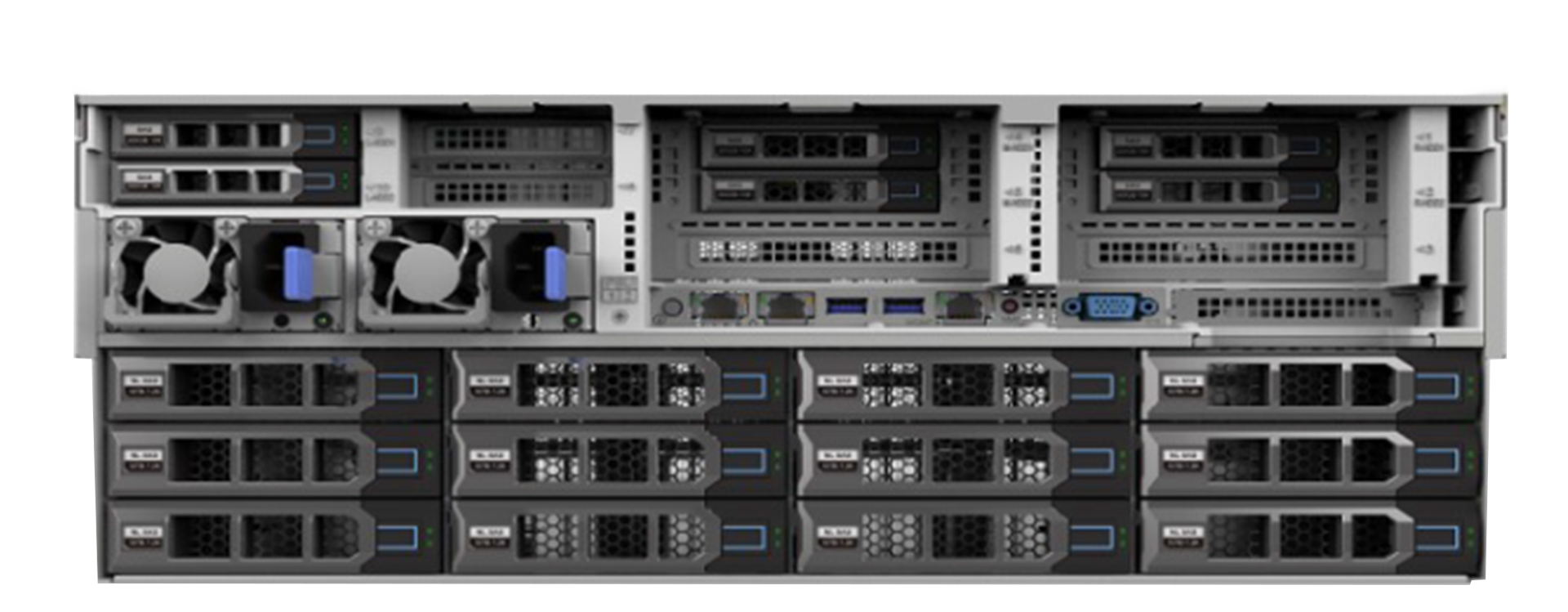

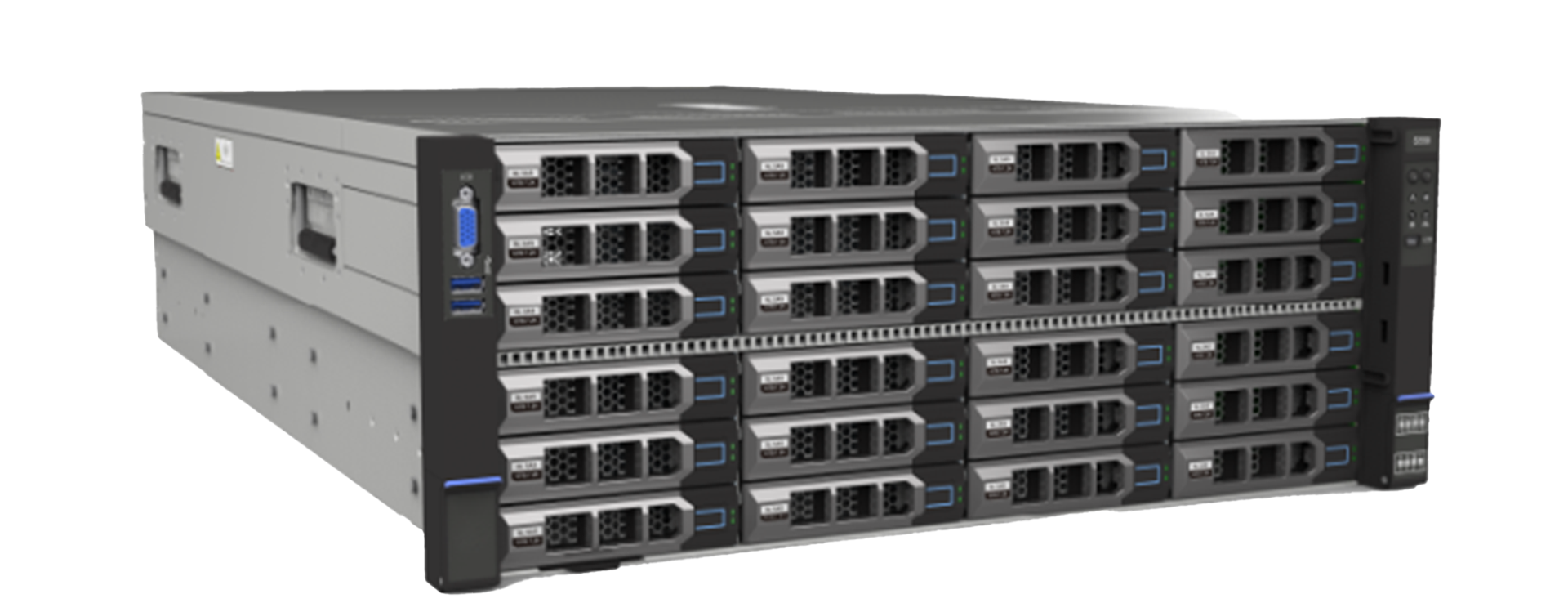

PR4036P4 is the latest 4 U server product launched by Powerleader. It adopts Intel C621 high-performance chipset and supports Intel's latest generation of Cascade Lake scalable series processors. This model supports up to 24 memory slots and 24 front-end 3.5 -inch hot plug the rear supports up to 16 hot plug3.5-inch hard drives and 2 hot plug2.5-inch hard drives, optional support for 4 internal 3.5-inch hot plug.and flexible expansion of PCI-E devices. The highly integrated and modular design brings high reliability and easy maintenance. The PR4036P4 provides advanced management functions and storage technology with reliable scalability and high availability.
Supports up to 2 Intel® Scalable processor, the UPI rate of theprocessor interconnection bus reaches 10.4GT/s, and a single CPU supports up to28 computing cores.
It supports Intel Turbo Boost technology, Hyper-threading technologyand advanced vector extension instruction set (AVX2.0), which can significantlyimprove the computing performance of computing-intensive applications.
24 memory DIMM slots, supporting a maximum of 2 933 Mhz DDR4 (optionally supporting AEP memory), fully meeting the needs of large-capacitymemory application scenarios.
Full support for SATA 3.0 and SAS 12Gb : faster transmission speed,lower power consumption and higher reliability.
Support up to 8 PCI-E 3.0 standard slots; 1 M.2 SSD slot onboard;
Onboard 2 gigabit data network ports, with load balancing, linkaggregation and support for redundancy, can effectively reduce network delay, 11000M dedicated network port for remote management .
Smart Array support for significantly enhanced I/O performance andoptional RAID 5 data protection.
Supports up to 44 3.5" SATA/SAS/SSD hard drives + 2 2.5"SATA/SAS/SSD hard drives.
Support high reliability SATA RAID5, optional support SAS RAID5,improve data processing performance and protect data functions.
The intelligent cooling system is adopted to effectively reduce noisepollution and create a constant temperature space for the cabinet; fullyshielded to prevent electromagnetic radiation, anti-interference, andanti-static (EMI) design.
Intel® Support Trusted Execution Technology (Intel® TXT ) providesreliable protection for virtual and cloud environments.
Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI )accelerates and enhances encryption for faster, stronger enterprise-wide dataprotection.
1+1 fully redundant power supply mode, 95% conversion efficiency,ultra-quiet power supply, support PMbus. Optional support for 240V/-48V DCsolutions.
Support intelligent frequency regulation function, which can reducesystem energy consumption at low load.
The fan speed is comprehensively adjusted according to the temperatureof the thermally critical components, which saves energy while reducing noiseand improving the reliability of the fan.
| characteristic | PR4036P4 Technical Specifications |
|---|---|
| Form | 4 U rack server |
| Number of processors | 1/2 piece |
| Processor model | Supports 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake/Skylake) , maximum support 205W (ambient temperature should be lower than 30 degrees) |
| Memory | 24 DIMM slots , support 2400/2666/2933MHz DDR 4 RDIMM memory , up to 3TB Optional support for Intel Optane DI MM |
| Diskdrives | Front : Can be configured with 24 3.5 - inch SAS/SATA hard drives . Built-in : Optional 4 3.5 - inch SAS/SATA hard drives ( compatible with 2.5 -inch ). Back end : can be configured with 16 3.5 - inch SAS/SATA hard drives + 2 2.5 - inch SAS/SATA hard drives or It can be configured with 12 3.5 - inch SAS/SATA hard drives + 4 2.5 -inch NVMe SSD hard drives + 2 2.5 - inch SAS/SATA hard drives . |
| Raid | Onboard support soft SATA RAID0, 1, 10, 5, Optional support SAS RAID0 , 1 , 10 , 5 , 50 , 6 , 60 , etc., RAID 1GB /2GB Cache , Optional Cache super capacitor protection. |
| NetworkInterface | Integrated 2 Gigabit Ethernet ports; optional external Gigabit and 10 Gigabit network cards |
| PCIE expansion | Supports 6 PCI-E expansion slots: 2 PCI-E3.0 x16 (full height card); 4 PCI-E 3.0 x8 (2*full height+2*Low Profile); Support up to 8 PCI-E 3.0 standard slots; Onboard 1 M.2 NVME 2280/22110 SSD; |
| Ports | USB3.0 interface: 4 (2 on the rear, 2 on the front panel) VGA interface: 2 ( 1 on the rear, 1 on the front panel ) Management network port : 1 (one at the rear) |
| Fans | 8 8038 cooling fans |
| Power supplies | Standard 1300 W platinum server 1+1 redundant power supply (supports 240V HVDC), supports PMbus; Optional -48V 1+1 redundant DC power supply, support PMbus |
| management | Support IPMI2.0 , provide a 1000 Mbps RJ45 management network port , integrate i KVM , support remote management |
| Display controller | Integrated ASPEED AST2 5 00 |
| CD-ROM/Drive | Optional USB interface optical drive, floppy drive emulation U disk |
| Supported Operating Systems | Microsoft Windows Server , Microsoft Hyper-V Server , Red Hat Enterprise Linux , SUSE Linux Enterprise Server , CentOS , Ubuntu |
| Power supplies | 100-127Vac/50-60Hz 200-240Vac/50-60Hz 230-240Vdc Optional -48V DC power supply |
| Dimensions | Height 17 5 mm* width 4 48 mm* depth 7 78 mm , support 19”cabinet, the maximum configuration net weight is about 62 KG |
| Environment and Specifications | |
| Ambient temperature | 5°C to 35°C during operation Non-operating -40°C to +6 5 °C surroundings |
| Relative humidity | 95% non-operating, non- condensing at 25°C to 30°C |
| Safety Standards (China) | CCC |
