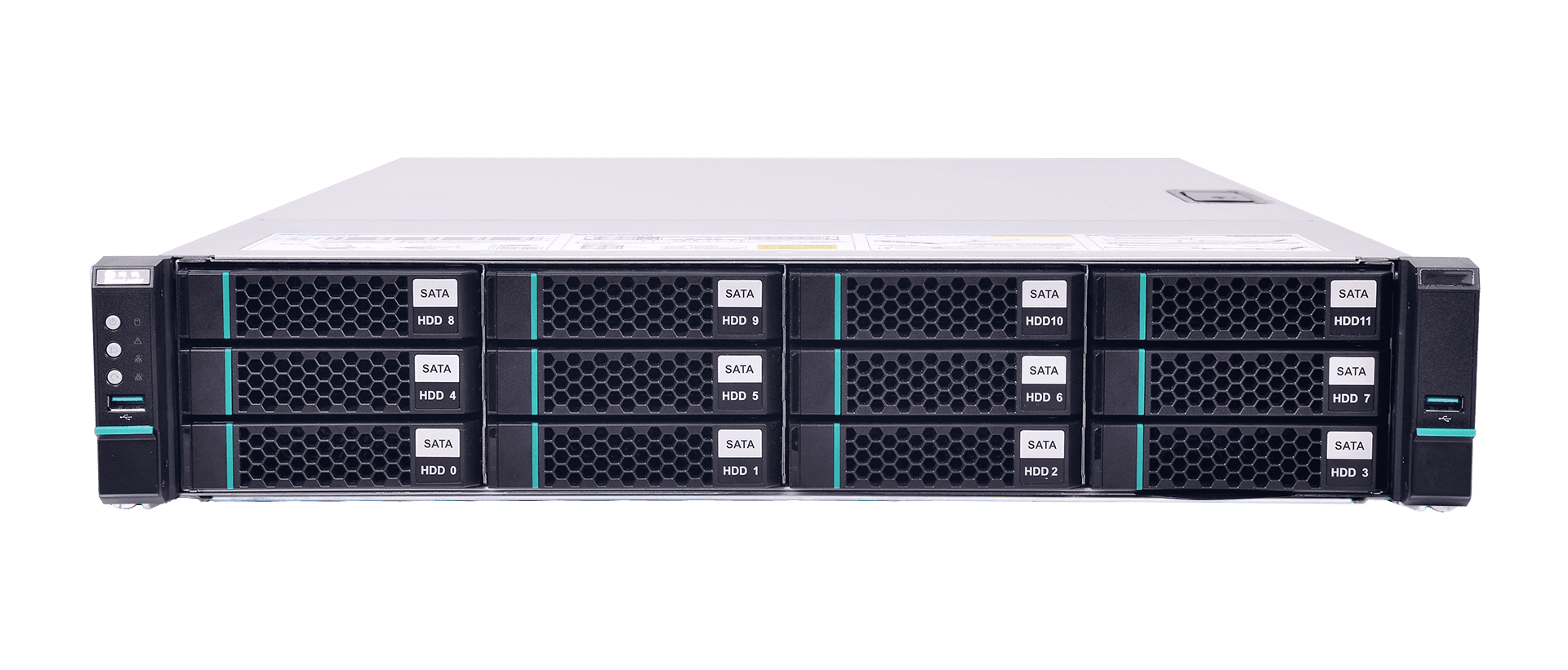

    PowerLeader AMD 2 - Socket Server PR2008AL

    PR2008AL is PowerLeader's latest AMD platform 2U dual-socket high-performance server product, providing 2 AMD SP3 processor slots, supporting AMD's latest Milan series processors, supporting up to 64 cores in a single processor core, which can provide unparalleled extreme experience and break a number of world-record computational performance, which can greatly enhance the computing power of the business platform, and can flexibly PCI-E, M.2 and other multi-purpose expansion.

    Functional features
    High Performance

    Supportsup to 2 AMD EPYC™7002/7003 series processors for powerful computing.

    Maximum 16 memoryslots provide up to 8 memory channels for a single processor, supporting up toDDR4 3200MHz frequency..

    Providesup to 6 PCIE 4.0 expansion slots, providing rich board expansion.

    Optionalsupport for 2 NVMe U.2 SSDs to provide high performance IO expansion.


    High Reliability

    Optionalsupport for highly reliable RAID protection function, providing differentlevels of data redundancy protection.

    SupportsIPMI 2.0 to facilitate monitoring and management of hardware status, and alsoprovides iKVM remote desktop management.

    It adopts an intelligentcooling system to effectively control the operating temperature and improveenergy efficiency ratio. It adopts full shielding to prevent electromagneticradiation, anti-interference and anti-static.

    Providesredundant 1+1 power supply, supports powerconsumption monitoring, module loss alarm and other functions, providing higher securityfor the safe operation of the server.

    Technical specifications

    Characteristic

    PR2008ALTechnicalSpecifications

    Format

    2U rack server

    Number of processors

    Maximum 2 pieces

    Processor specifications

    AMD EPYC™ 7002/7003 series processors, supporting maximum TDP 280W

    Memory

    16 DDR4 memory slots , supports R DIMM/LRDIMM

    up to DDR4 3200MHz, and the maximum system capacity supports 4 TB

    *When only 1 CPU is installed , a maximum of 8 DIMM slots are supported

    Storage

    Prefix:

    Configuration 1: Supports up to 8 2.5/3.5-inch SATA/ SAS disks (directly connected to the backplane, SAS disks must be equipped with SAS cards or RAID cards )

    Configuration 2 : Supports up to 12 2.5/3.5-inch SATA/ SAS disks (extension backplane, a SAS card or RAID card must be selected )

    Post:

    Optional support for 2 2.5-inch disks ( SATA / SAS/ NVME )

    built-in:

    Onboard support 1 PCIE 4.0 x 4 M.2 SSD (supports 2280/22110 )

    RAID support

    Optional supports RAID 0 , 1 , 10 , 5 , 50 , 6 , 60 levels, RAID no cache/1GB /2GB cache

    Optional cache power-down protection

    Network

    Standard configuration: 2 1Gb electrical ports (Broadcom BCM5720L )

    11Gb management port comes standard

    Optional expansion Gigabit and 10 Gigabit network cards

    PCI-E extension

    Provides 6 expansion slots:

    3 *PCI-E 4.0 x 16 half height half length

    3 *PCI-E 4.0 x 8 half height half length

    *When only 1 CPU is installed , some PCI-E slots are unavailable

    Ports

    USB3.0 interface: 2 (front) and 2 (rear)

    VGA interface: 1 (rear)

    COM serial port: 1 (rear)

    Fans

    4 8038 cooling fans

    Power supply

    Optional 800W /1200W redundant 1+ 1 power supply, 80Plus platinum level

    IPMI Management

    Support IPMI 2.0 , provide 1 RJ45 management network port externally, support iKVM remote management

    Onboard ASPEED AST2600 BMC

    Display controller

    Integrated ASPEED AST2600

    CD-ROM/Floppy drive

    Optional USB interface light

    Operating systems

    Windows Server 2016 and above

    Red Hat Enterprise Advanced Server 7.6 and above

    SuSE SLES 11 SP4and above

    Ubuntu 18.04and above

    CentOS 7.6and above

    Powered by

    220V AC/240V DC

    Physical size

    Width 438mm*Depth 660mm*Height 87mm

    environment and regulations


    Temperature

    10℃to 30℃during operation

    -40℃to +70℃when not operating surroundings

    Relative humidity

    95% non-operating , non-condensing at 25℃to 30℃

    Noise

    In operation mode, the sound pressure measured in the side position is <50dBA;the sound intensity measured when the ambient temperature is <28℃is 6.2BA

    Safety Standards (China)

    CCC



    Service and Support

    PowerLeader provides nationwide joint warranty, and PowerLeader 's professional after-sales service outlets across the country provide "one-stop" service response and support.

    - 3-year limited on-site warranty and on-site support

    - 4008-870-872 hotline response and support

    For more information: please visit: http://en.wuqingbo.com/

    Correspondence address: 16th Floor, Building B, Building 7, Baoneng Technology Park, No. 1 Qingxiang Road, Longhua District, Shenzhen


    PowerLeader reserves the right to change product specifications or other product information (including but not limited to product weight, appearance, size or other physical factors) without notice; the information mentioned in this article may change due to product upgrades or other reasons. resulting in changes without prior notice. The product pictures involved in this article are subject to the actual product.
